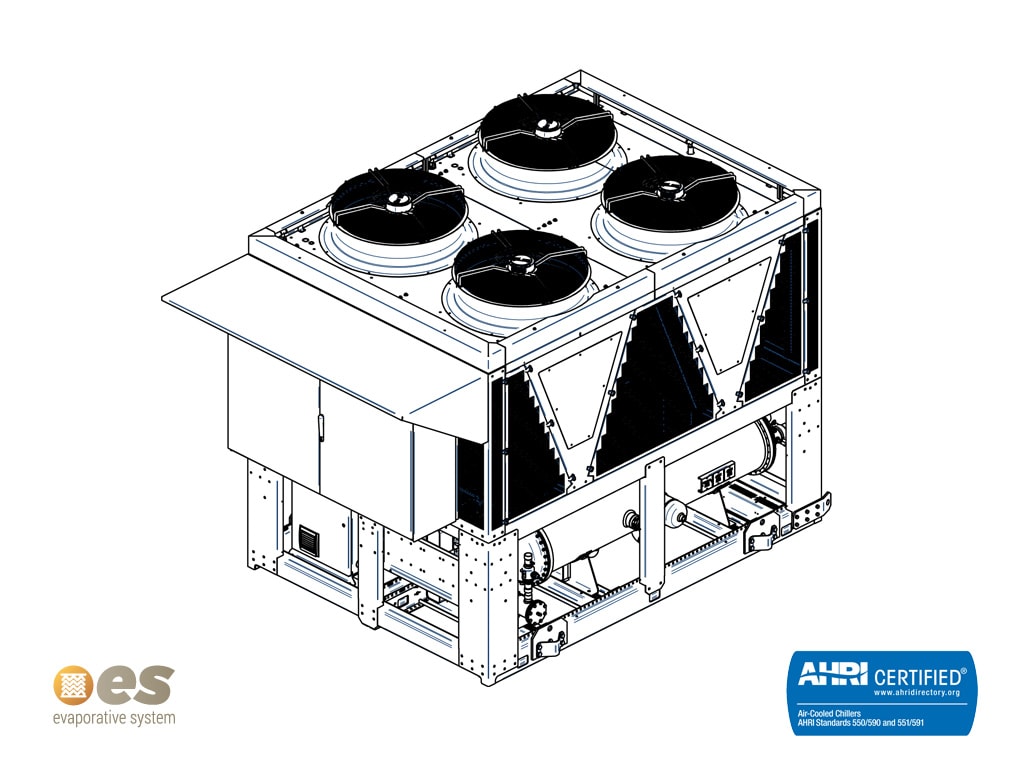

TMA 1Z250A ES EC-ZE

Description
Air cooled chiller with oil-free centrifugal compressors and Evaporative System for outdoor installation

Cooling Capacity
250 kW (71 RT)

E.E.R.*
4.19 W/W (14.29 Btu/Wh)

Refrigerant
HFO-1234ze

Power circuit voltage
400/3/50 Hz

Dimensions/Weights
Length with electrical cabinet: 3210 mm (126 in)
Width: 2250 mm (88 in)
Height: 2540 mm (100 in)
Shipping / Operating weight: 2460 / 2511 kg (5423 / 5535 lb)

Certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org
