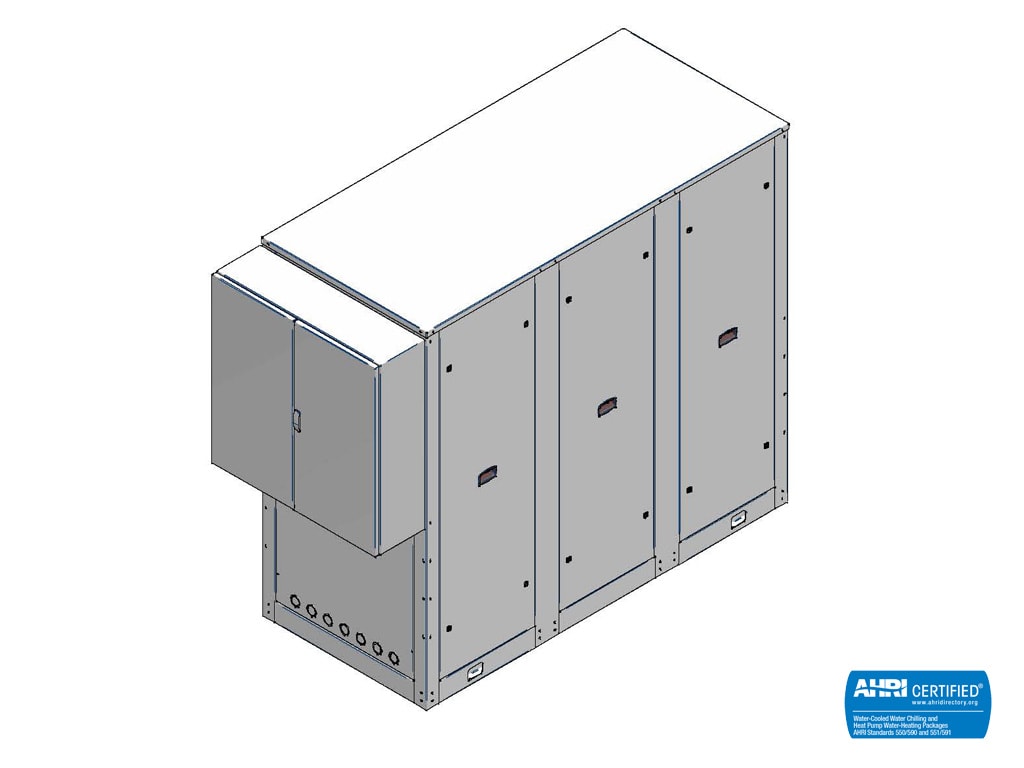

VHH 2242 WT-01

Description
Water cooled chiller with scroll compressors for indoor installation

Cooling Capacity
118 kW (33.5 RT)

E.E.R.*
4.12 W/W (14.05 Btu/Wh)

Refrigerant
R410A

Power circuit voltage
3/380-430/50 Hz

Dimensions/Weights
Length with electrical cabinet: 2500 mm (98 in)
Width: 1000 mm (39 in)
Height: 2000 mm (78 in)
Shipping / Operating Weight: 1176 / 1203 kg (2592 / 2652 lb)

Certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org
