TMA 2A550B EC-34 K SP

Description

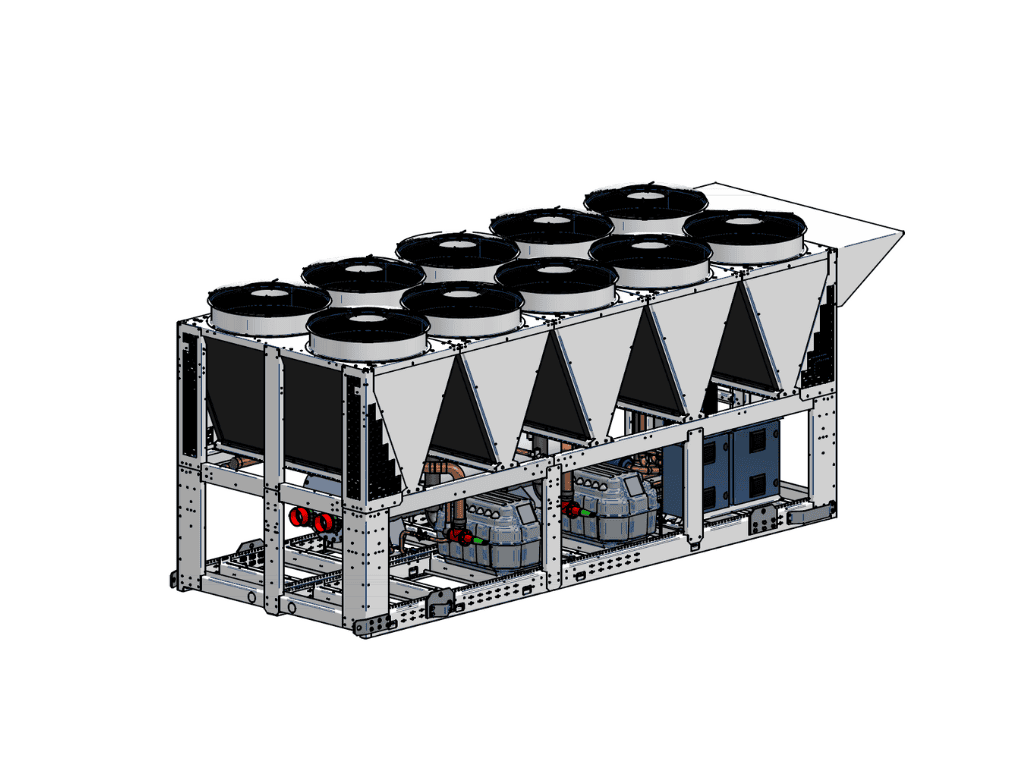

Air cooled chiller with oil-free centrifugal compressors for outdoor installation

Cooling Capacity
634 kW (180.3 RT)

E.E.R.*
3.47 W/W (11.84 Btu/Wh)

Refrigerant
R134a

Power circuit voltage (Ph/V/Hz)
3/380-430/50

Dimensions/Weights
Length with electrical cabinet: 5560 mm (218.9 in)
Width: 2100 mm (82.6 in)
Height: 2525 mm (99.4 in)
Shipping / Operating Weight: 4116 / 4224 kg (9074 / 9312 lb)

Certified in accordance with the AHRI Air-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org
