VHA F2V30A EC-290 CM

Description

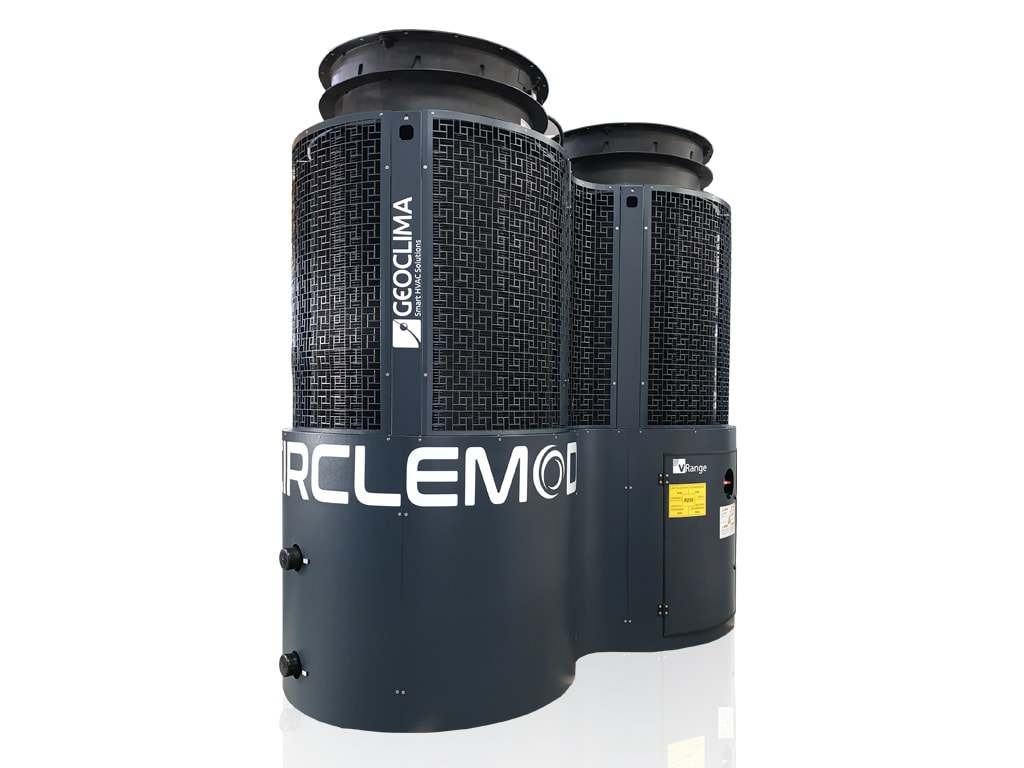

Air cooled modular chiller with reciprocating compressors and cylindrical condensers for outdoor installation

Cooling Capacity
125.4 kW (35.6 RT)

E.E.R.*
3.38 W/W (11.53 Btu/Wh)

Refrigerant
R290

Power circuit voltage
3/360-440/50 Hz

Dimensions/Weights
Length with electrical cabinet: 2340 mm (92 in)
Width: 1170 mm (46 in)
Height: 2450 mm (96 in)
Shipping / Operating Weight: 1170 / 1180 kg (2579 / 2601 lb)

Certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org
